GL-500J tape coating machine

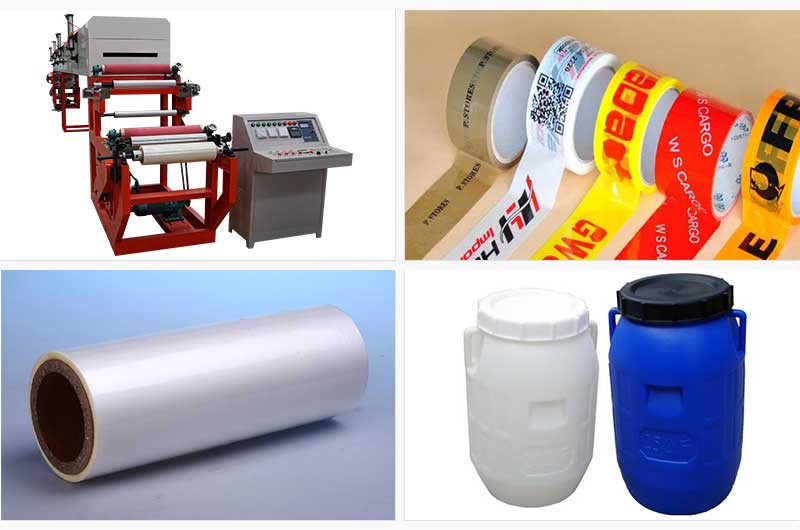

BOPP tape coating machine making printed &clear & color jumbo roll on same machine by one step from raw materials (bopp film,water based pressure sensitive glue,paper core).

Product Description

GL-500J tape coating machine

1. PLC control system with touch screen control panel. Simple operation, more user friendly.

2. Oven top wholly opening : Easy film putting in oven & cleaning & checking

3. Power:  2 motors with inverters speed control.

4. Printing : 1 color  engravure printing

5. Coating : automatic blade transfer coating ,make different coating thickness on same machine

6. Drying: water tank inside, heating  by electricity

7. Energy saving temperature control:  Two segmented automatic temperature controls.

8. 1 shafts rotary rewinding ,easy operation.

9. EPC  for guiding right direction of film walking & flat rewinding edge of the tapes.

Main Technical Parameters:

Item Cello tape making machine
Dimensions 7.60m*0.80m*2.40m
Power 3-phase,380v,50Hz,15kw
Printing 1 color engravure printing
Max.coating width 500mm
Max.coating speed 28m/min
Max.loading diameter 600mm
Max.rewinding diameter 600mm
Drying heating water by electricity
