Product Description

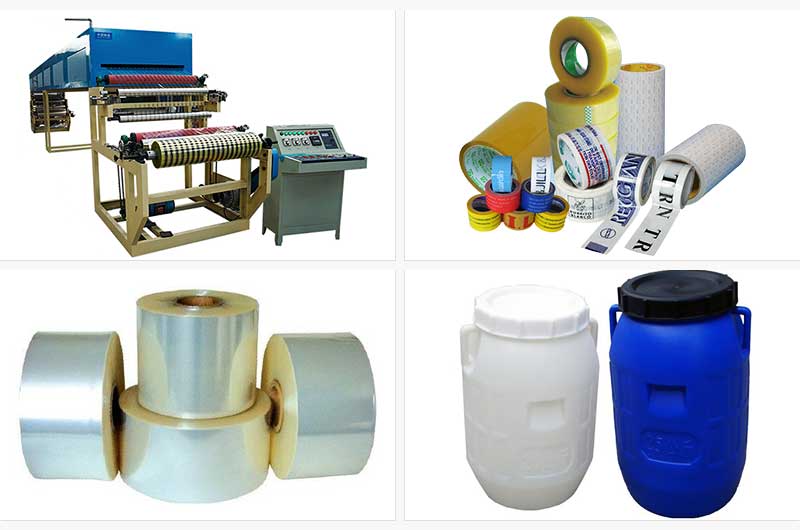

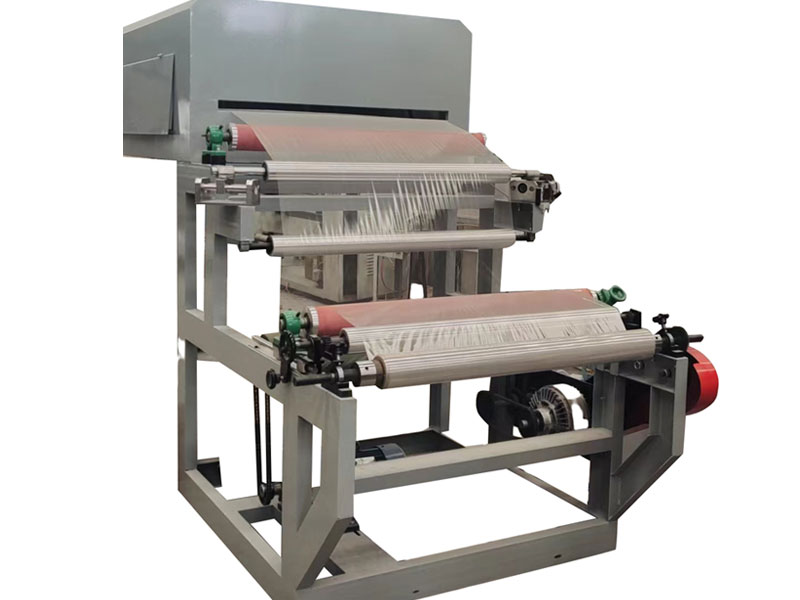

Small BOPP tape coating machine, small batch transparent box sealing tape printing coating machine, gluing machine equipment
Application: Suitable for BOPP film printing, coating, cutting and rewinding to produce clear tape, printed tape, color tape or stationery tape
Raw material: BOPP film, adhesive glue, paper core
| SPECIFICATIONS FOR BOPP TAPE COATING MACHINE | |
| COATING WIDTH | 1000MM |
| COATING SPEED | MAX.40M/MINUTE TWO MOTORS WITH INVERTERS, SPEED ADJUSTABLE. |
| OVEN TUNNEL | 10M |
| MAX UNWINDING DIAMETER | 600MM |
| MAX REWINDING DIAMETER | 600MM |
| MAX TEMPERATURE DESIGN | 120C |
| REWINDING SHAFT DIAMETER | 3 INCH |
| PAPER CORE DIAMETER | 3 INCH |
| POWER: | 35KW |
| VOLTAGE | 380V,50HZ |
| PAHSE | 3 PHASE |
| DIMENSION | 11.6M* 1.3M*2.1M |
