GL-1000C adhesive tape making machine

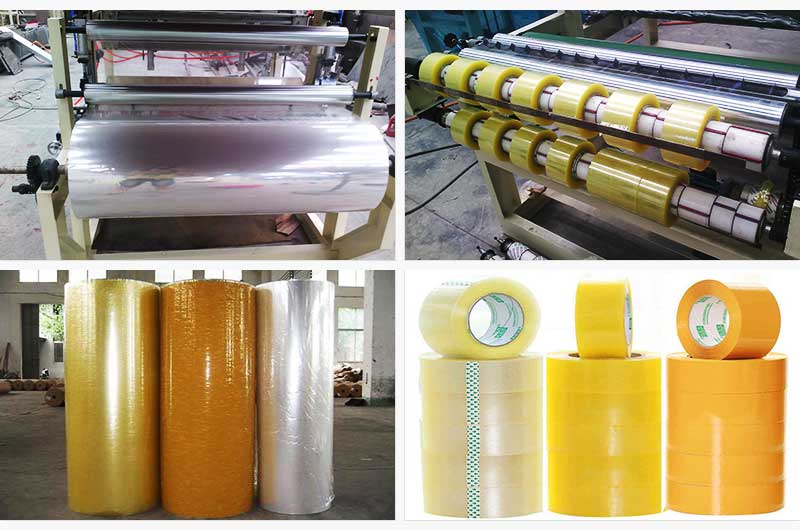

The adhesive tape machine is a multi-functional machine that integrates the functions of gluing, printing, slitting and rewinding. The raw materials it needs are film, glue and paper tube. It is suitable for the production of bopp tape, transparent tape,stationery tape, super clear tape and other adhesive products.

Product Description

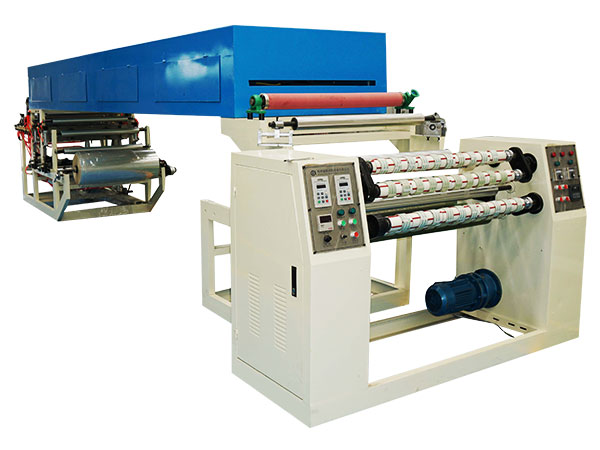

GL-1000C adhesive tape making machine

1. Power:  2 motors with inverters speed control.

2. Printing : 1 color  engravure printing .

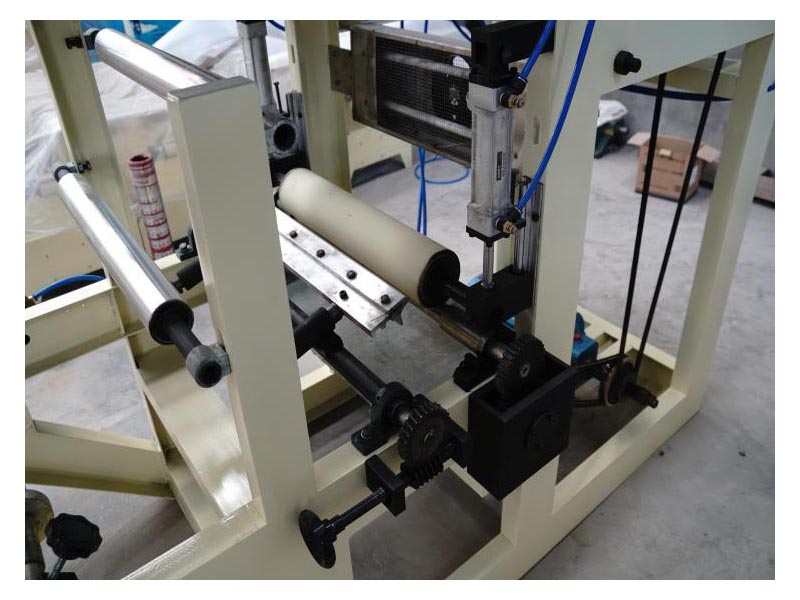

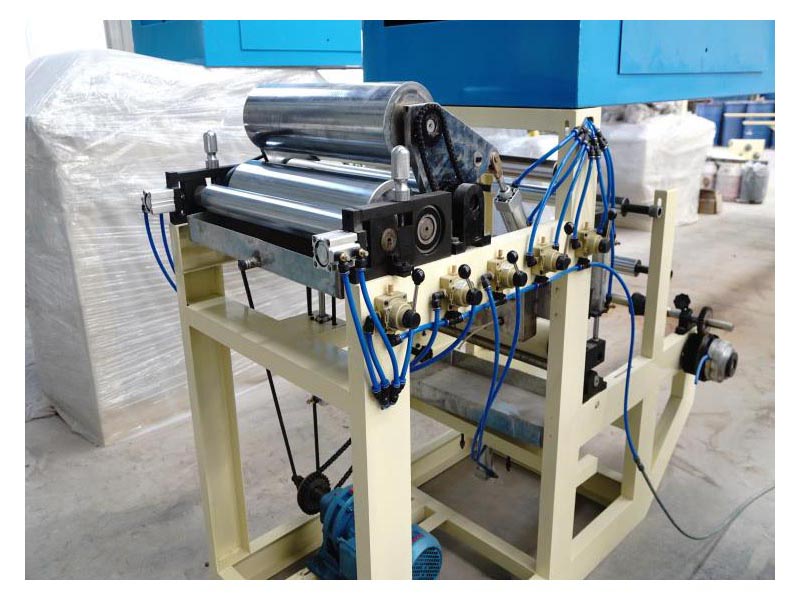

3. Coating : automatic blade transfer coating ,make different coating thickness on same machine .

4. Drying: water tank inside, heating  by electricity .

6. Energy saving temperature control:  Two segmented automatic temperature controls .

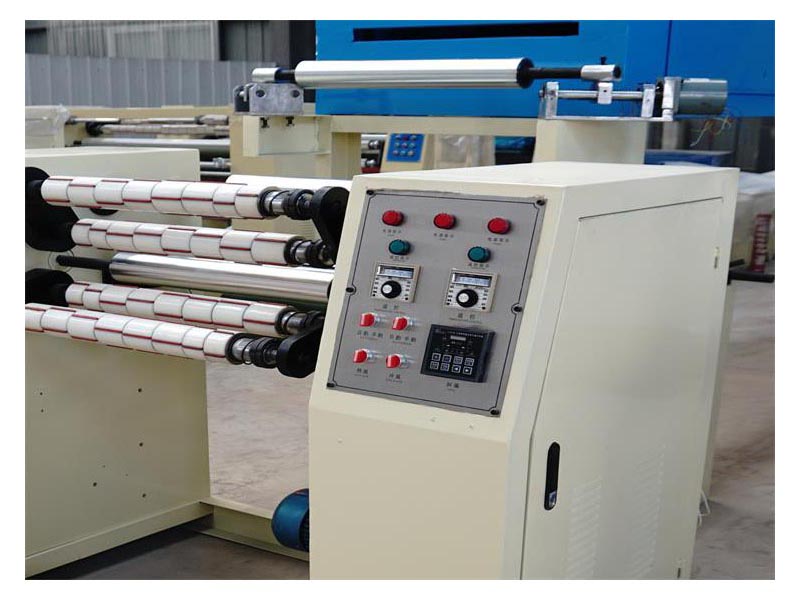

7. 4 shafts rotary rewinding ,easy operation .

8. EPC  for guiding right direction of film walking & flat rewinding edge of the tapes .

Main Technical Parameters:

Item GL-1000c
Dimensions 7.60m*1.90m*2.40m
Power 3-phase,380v,50Hz,25kw
Printing 1 color engravure printing
Max.coatingwidth 1000mm
Max.coating speed 22m/min
Max.loading diameter 600mm
Max.rewinding diameter 180mm/td>
Drying heating water by electricity
