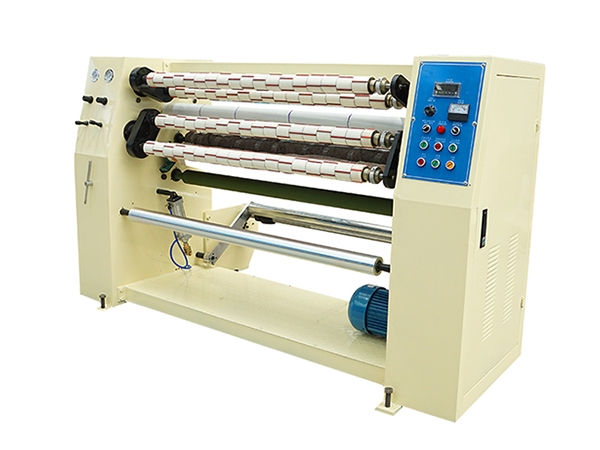

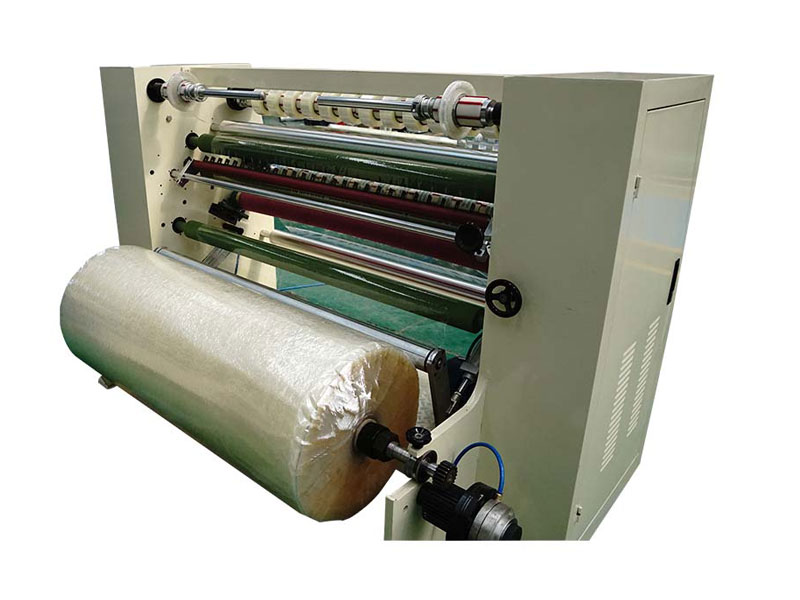

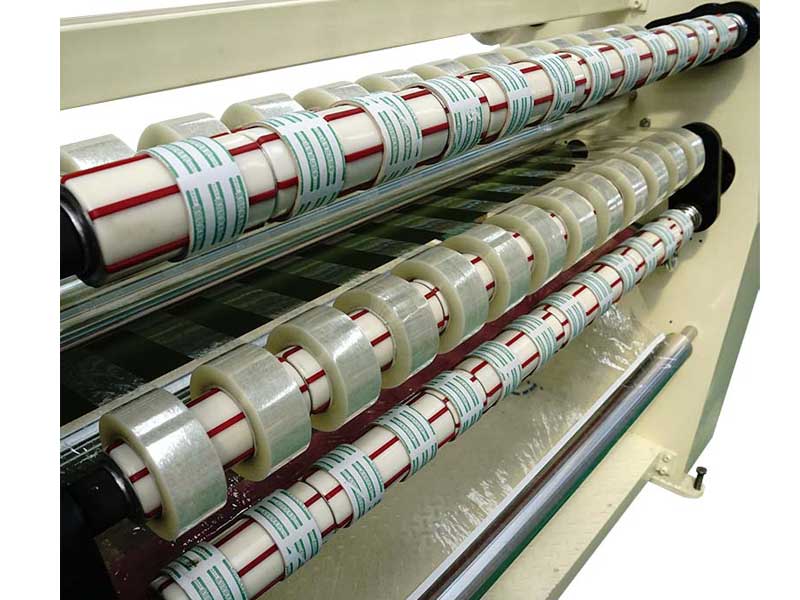

GL-210 bopp tape slitting machine

GL-210 bopp tape slitting machine

Product Description 1.Each part of the machine is controlled, centralized control of left and right panels, easy to operate. 2. Three-stage length setting: advanced three-stage length counting. Ensure accurate winding length. 3. Automat…

Product Description

1.Each part of the machine is controlled, centralized control of left and right panels, easy to operate.

2. Three-stage length setting: advanced three-stage length counting. Ensure accurate winding length.

3. Automatic axis exchange: After the winding operation is completed, the two axes are automatically exchanged, which is easy to operate and has high efficiency.

4. Bow-shaped unrolling wheel: The unrolling wheel is a unique bow-shaped design. Eliminates wrinkling of the tape during unrolling or feeding

5. Pneumatic brake: When the machine is stopped, the tape can be stopped instantly, with accurate positioning and accurate labeling.

Main Technical Parameters:

Item GL-210-1600 GL-210-1300 GL-210-1000
Dimensions 2.6*1.3*1.5m 2.3*1.2*1.4m 2.05*1.2*1.4m
Max.slittingspeed 180m/min 180m/min 180m/min
Max.slitting
width
1600mm 1300mm 1000mm
Min.slitting
width
12mm 12mm 12mm
Max.loading
diamete
800mm 800mm 800mm
Max.rewinding
diameter
350mm 350mm 350mm
Power    380v,50Hz,4kw 380v,50Hz,4kw 380v,50Hz,3kw
