Product Description

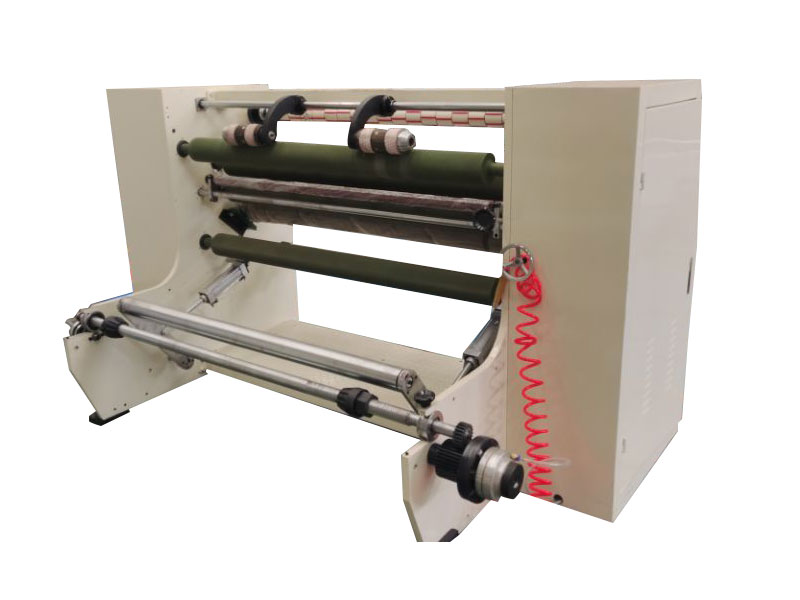

Bopp tape slitting machine is slitting and rewinding the bopp jumbo roll into tape in all sizes for carton packing use etc.
1. Bopp tape slitting machine
2. Bopp jumbo roll slitting machine
1. Double plates 4-shaft rotary rewinding, machine no stop during change shafts, save time
2. Advanced three – section length count to ensure exact coiling length.
3. One time maximum can rewinding one ton jumbo roll scrap.
4. Control of all parts of machine,centralized control panel left and right, easy of operate.
5. After the crimping operation is completed, the two shafts are antomatically exchanged, easy to operate and high efficiency.
6. Auto Scrap swing rewinding unit: one time maximum can rewinding one ton jumbo roll’ scrap, reduce your time for changing new paper core for rewinding scrap.
7. Noise reduce cover more friendly operation.
Main Technical Parameters:
| Effective working width | 1600mm | 1300mm |
| Long*Width*Height | 2600*130*1500mm | 2300*1200*1400mm |
| Slitting Speed | 0 – 180m/min | 0 – 180m/min |
| Paper core diameter | φ76.2mm | φ76.2mm |
| Mini slitting width | 12mm | 12mm |
| Cutting tool specifications | 0.2*22*60mm | 0.2*22*60mm |
| Maximum feed diameter | 700mm | 700mm |
| Power | 5.5kw 380v 50hz | 4kw 380v 50hz |
