GL-701 Single Shaft Auto Roll Cutting Machine

It is suitable for cutting OPP tape/PVC tape/Electrical tape/Mask tape/Double-side tape/Kraft tape/Cloth tape, etc. Every machine motion is programmable by PLC. Operation is ease and flexibility. It can cut 10 various kinds of width on one roll.

Product Description

1. Single Shaft Tape Cutting Machine

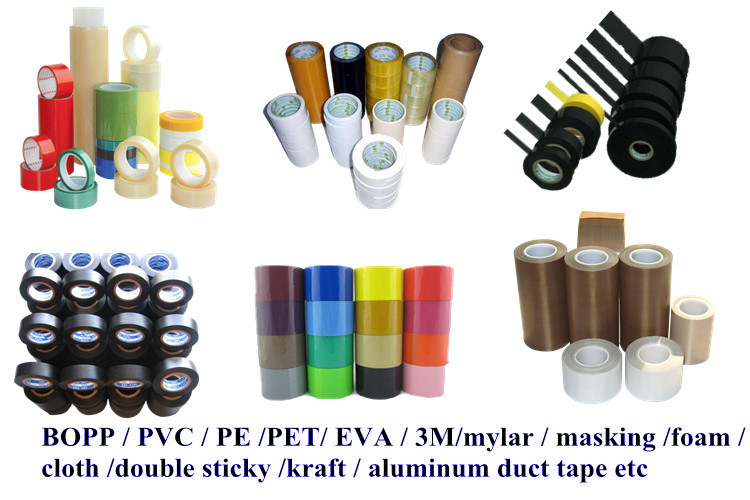

Used for film, paper, masking tape, adhesive tape, double side tape, cloth tape, industrial tape, protection film,PET/PE/BOPP/PVC tape and so on

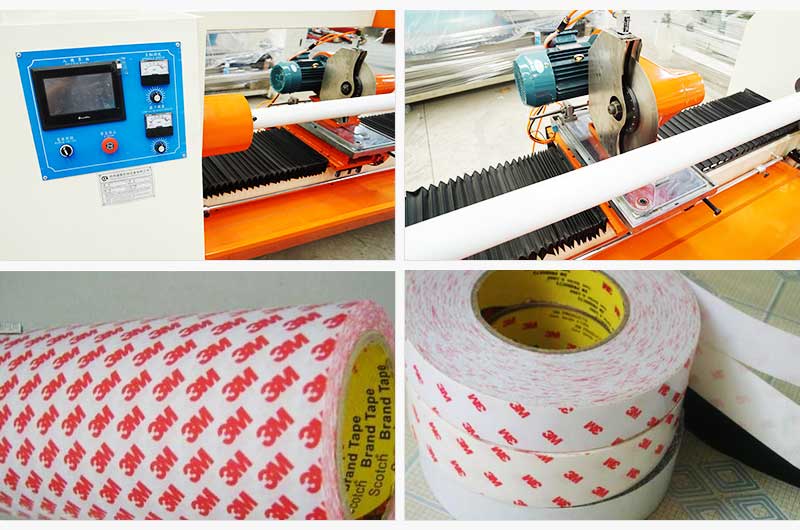

GL-701 Single Shaft Auto Roll Cutting Machine

1. Main driving part: Siemens AC motor with inverter is employed.

2. Operating panel:  All functions are operated on the 10″ LCD touch panel.

3. Motor control system: The central control system is PLC programmable controller.

4. Central control unit: Programmable central control is used and 20 sizes can be set on the same shaft for auto transfer and cutting.

5. Blade feeding positioning system:Blade feeding is controlled by Mitsubishi servo motor, and the cutting speed is adjustable in three stages.

6. Auto angle adjustment of circular blade: Mitsubishi servo motor is used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°).

7. Quick shaft change system: Three kinds of shafts are available and quick change of shafts is applied for different materials.

8. Cutting positioning system: Cutting positioning is controlled by Mitsubishi servo motor. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.

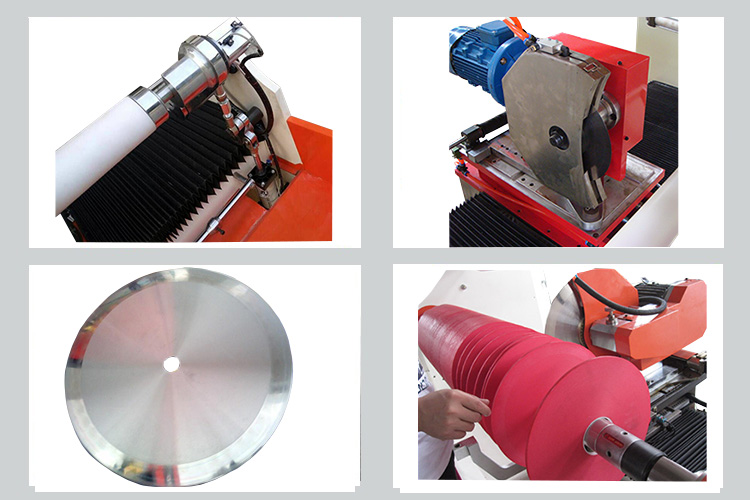

GL-701 Single Shaft Auto Roll Cutting Machine

Optional Parts:

1. Other size cutting shaft It can be made as per the required core I.D.
2. Cutting supporter For supporting log roll when cutting core below 38mm.
3. Safety cover To protect operator during the production this is compliant to the CE regulation.

Main Technical Parameters:

Machine width 1.3M / 1.6M
Max. Cutting O.D 450mm
Inner core I.D 1″ – 3″
Min. Cutting width 1mm
Cutting precision + / – 0.1mm
