1.Main Motor: Cutting shaft and circular blade are driven by A.C motor with inverter control, which able to set RPM and running direction obverse/reserve on different requests.
2. Central Control: Central control system is CPU, which can cut various sizes on one log roll by changing modes automatically.
3. Display Mode: All functions are operated under LCD touch panel control, which is operator friendly and easy for data setting.
4. Width Setting: Width setting is controlled by servomotor with ball screw and guide rails to make accuracy movement.
5. Cutting System: Knife feeding is controlled by servomotor, which can do three-speed cutting.
6. Knife Angle Adjustment: Cutting angle can be changed automatically for making roll surface smoothly.

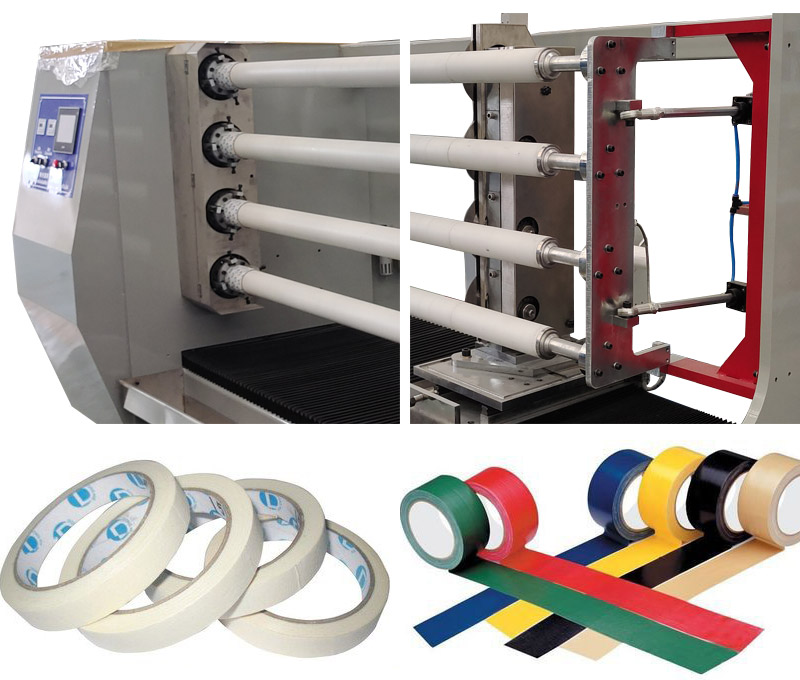

7. Shaft Change: Three kinds of cutting shafts for optional using on this machine, which use quick changing shaft according to different material.
|1. Other size cutting shaft||It can be made as per the required core I.D.|
|2. Cutting supporter||For supporting log roll when cutting core below 38mm.|
|3. Safety cover||To protect operator during the production this is compliant to the CE regulation.|
Main Technical Parameters:
|Machine width||1.3M / 1.6M|
|Max. Cutting O.D||150mm|
|Inner core I.D||1″-3″|
|Min. Cutting width||1mm|
