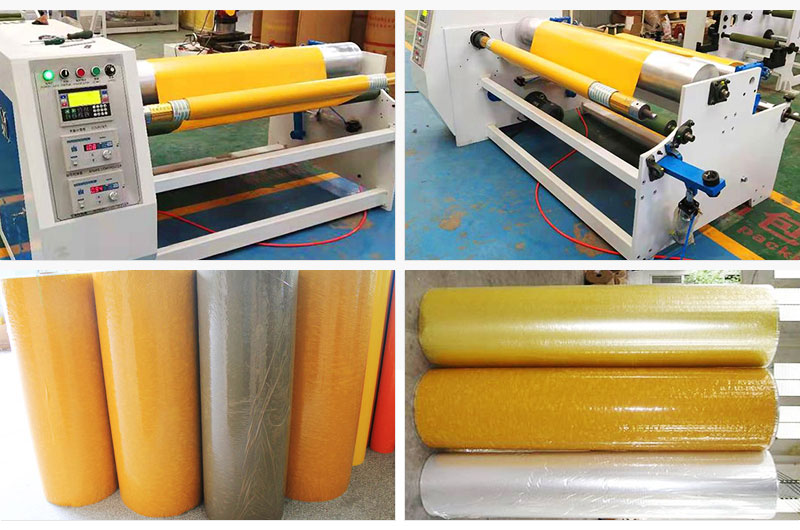

GL-807 Single Shaft Tape Rewinding Machine

Jumbo Roll rewinding machine is suitable for winding jumbo rolls of BOPP tape, PE tape, PET, masking tape, double-sided tape, foam tape, duct tape, double sided tape into log rolls.

Product Description

GL-807 Single Shaft Tape Rewinding Machine

1. 2 -step length counter,accurate rewinding length setting & auto stop when finish.

2. Inflatable shaft  loading & rewinding ,firmly fixing the core on the shaft, easy loading & unloading.

3.Pinch roller in loading part, ensure steady working.

4. Magnetic powder brake  , for loading and rewinding parts.

5. Auto tension control, flat & smooth  rewinding.

Item GL-806-1300 GL-806-1600
Dimensions   2.6m*1.7m*1.5m           2.9m*1.7m*1.5m
Power 3-phase,380v,50Hz,4kw  3-phase,380v,50Hz,6kw
Max.rewinding speed  100m/min 100m/min
Max.rewinding width 1300mm 1600mm
Max.loading diameter 600mm 600mm
Max.rewinding diameter 300mm 300mm
Paper core inner diameter 3” 3”
