Product Description

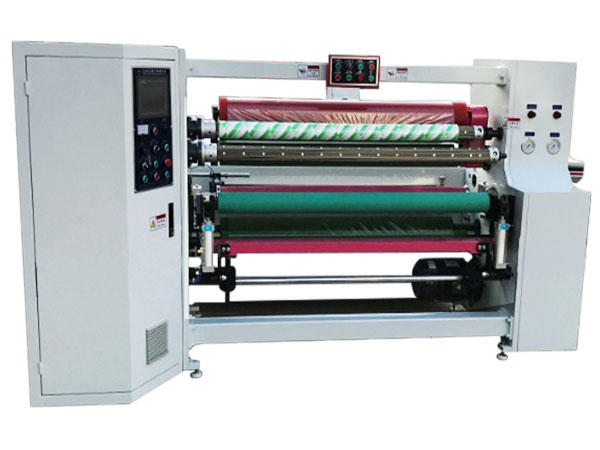

Double-shaft Automatic Tape Rewinding Machine

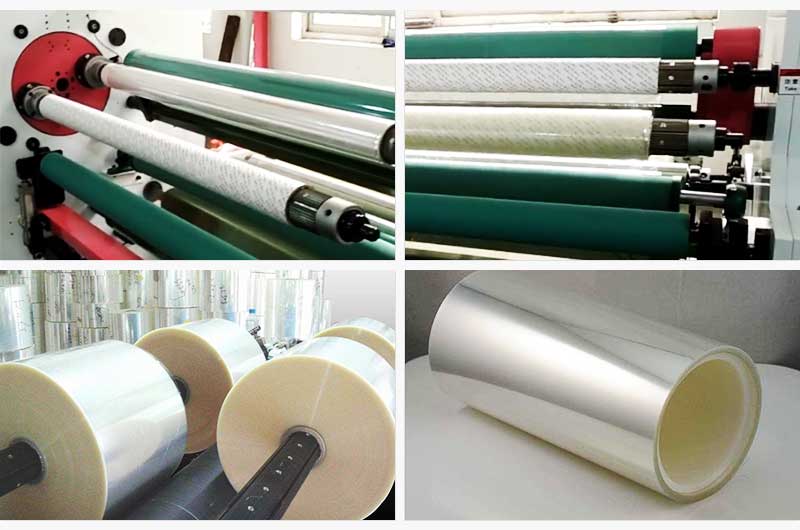

Jumbo Roll rewinding machine is suitable for winding jumbo rolls of BOPP tape, PE tape, PET, masking tape, double-sided tape, foam tape, duct tape, double sided tape into log rolls.

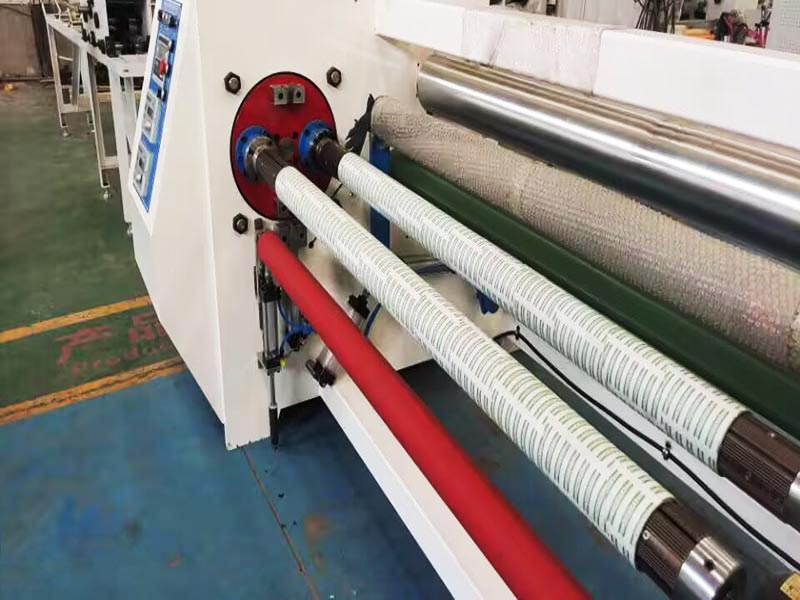

1. The paper core is held firmly on the pneumatic shaft. With easy, fast loading and unloading, it greatly improves efficiency.
2. The pressing roller is controlled by the cylinder and the pressure is adjustable. The semi-finished products are properly pressed to ensure smooth, stable running during rewinding.
3. Programmable controller: the high performance programmable controller offers convenient control of the entire rewinding operation. Both length and tension are accurately displayed by LCD readout.
4. Automatic length setting: the two-step length counter provides accurate rewinding length control. Once the set length is reached, a servo motor is adopted so that shafts will instantly and automatically changes, ensuring easy operation and efficient performance.
Main Technical Parameters:
Machine width | 1.3M / 1.6M |
Cutting precision | + / – 0.1mm |
Max. Cutting O.D. | 450mm |
Inner core I.D. | 1″-3″ |
Voltage | 380V,50Hz |
